High Speed Automatic Counter Pressure Craft Beer Glass Bottle Filling Machine Line Equipment

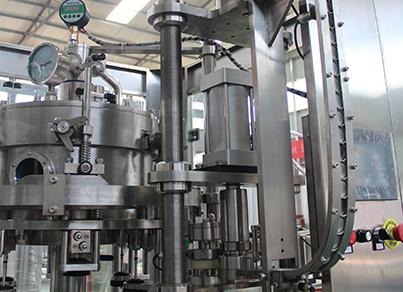

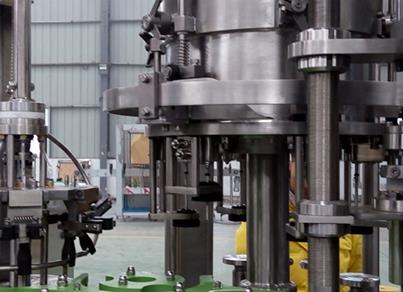

HG-CGF type beer bottle washing filling capping monoblock is designed combined with the actual situation in our country after the introduction and absorption that comes from Germany technologies. It adopts isobaric filling principle and filling valve adopts high precision mechanical valve. It...Send InquiryChat Now
HG-CGF type beer bottle washing filling capping monoblock is designed combined with the actual situation in our country after the introduction and absorption that comes from Germany technologies.
It adopts isobaric filling principle and filling valve adopts high precision mechanical valve. It has advantages of fast filling speed, high precision in liquid level. Adopt MITSUBISHI automatic controlling system, realizing trinity of the machines, and control the washing, filling and capping process.
1. No bottle, no filling: the machine only starts to fill when there is bottle, because there is sensor to check the bottle. It will avoid the waste of the bottle and beer. The rate of the broken bottle is less than 0.7% and the waste of the beer is less than 0.8%.
2. Twice evacuation, long shelf life. The filling process is cleaner and pure due to its twice evacuation of bottles, and more stable because of isobaric filling operation. Using vacuum pump and CO2 injection to realize the second evacuation ensure no O2 and bacteria in the bottle, guarantee the filling quality and the shelf life. The vacuum rate will be more than 90% after the twice evacuation and the dissolved oxygen will be less than 0.02～0.04mg/L.
3. Easy change, save time. It can be suitable for different bottle height by the up and down device. Nylon board is easy to change. It takes less than half an hour to change the changeable parts. Therefore, this machine is the best ideal choice for beer factories.
The filtering capacity of this filter is made of excellent SS304, and has a good filtering precision, small material loss, strong corrosion resistance. Disassembling is unnecessary when cleaned, and its anywhere can be well cleaned. It mainly used in Beer, Fruit wine, Beverage, Sugar, Seasoning, Medicine, Chemical industry.

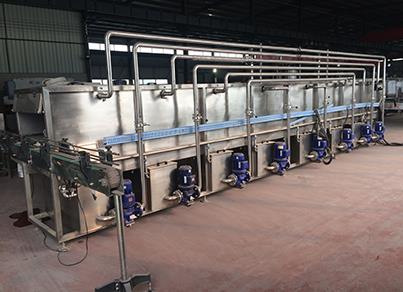

This spray warm and cooling machine also named tunnel pasteurizer, which is different from the direct heat method (instantaneous sterilization), tunnel pasteurizer sterilize products and containers together, so that you can eliminate various possible causes of the growth of harmful bacteria within the allowed time.

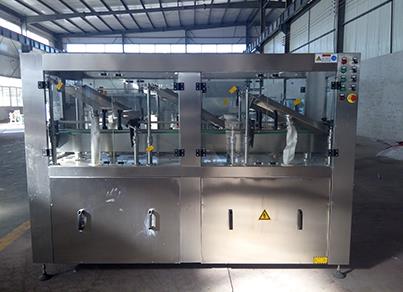

1. This machine is applicable for drying the bottles before labelling.
2. The wind direction is adjustable. The wind mouth can also be adjusted according to actual situation.
3. Almost every kind and size of bottles can be dried by this machine.
4. Low energy cost.
5. No easy-wear accessories or parts.

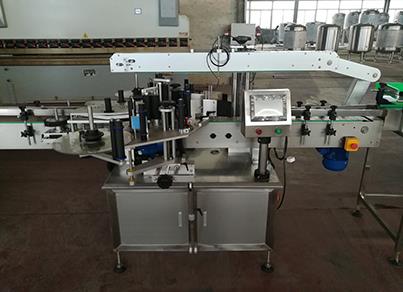

1. Suitable for a round bottlefront, back and neck label, flat and round bottles, single sided labeling, such as flat shampoo bottles and flat bottles of lubricating oil, liquid soap round bottle, wine bottle, etc.
2. Double the efficiency, which are widely used in chemical, cosmetics, petrochemical, pharmaceutical and other industries.

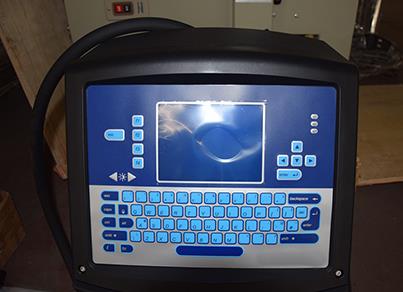

1. Equipped with vacuum ink recycle system to reduce the consumption of the ink, small occupation. Self-adjust when there's break, to confirm the best printing effect.
2. Easy to operate.
3. This machine would print in many different languages.
4. Display the product code, batch, etc.
5. Bold the characters as much as 9 times.
6. It can print 3 lines, numbers and other characters in English version.
