Can a copper bar be used in a marine environment?
As a copper bar supplier, I often get asked about the suitability of copper bars in various environments, especially the challenging marine environment. The marine environment is characterized by high salinity, humidity, and the presence of corrosive agents, which can pose significant challenges to many materials. So, can a copper bar be used in a marine environment? Let's delve into this question.
Properties of Copper Bars
Copper is a well - known metal with a wide range of applications due to its excellent electrical conductivity, thermal conductivity, and malleability. Copper bars, in particular, are used in electrical wiring, heat exchangers, and various industrial applications.
One of the key properties of copper is its relatively good corrosion resistance. Copper forms a thin oxide layer on its surface when exposed to air, which acts as a protective barrier against further oxidation. This oxide layer, known as patina, is a characteristic greenish - blue layer that can be seen on copper statues and buildings over time.
Challenges in the Marine Environment
The marine environment presents unique challenges for materials. The high salt content in seawater is a major factor. Saltwater contains various ions, such as chloride ions, which can accelerate the corrosion process. Chloride ions can penetrate the protective oxide layer on copper, leading to pitting corrosion. Pitting corrosion is a localized form of corrosion where small holes or pits form on the surface of the metal, which can weaken the material over time.
In addition to the high salt content, the marine environment also has high humidity levels. Moisture in the air can react with the salt on the surface of the copper bar, creating an electrolyte solution that further promotes corrosion. The constant exposure to waves, tides, and sea spray can also cause mechanical wear on the copper bar, which can expose fresh metal surfaces and increase the rate of corrosion.
Corrosion Resistance of Copper in the Marine Environment
Despite the challenges, copper has some degree of corrosion resistance in the marine environment. Copper alloys, in particular, can be more resistant to corrosion than pure copper. For example, copper - nickel alloys, such as Cupronickel (70/30 or 90/10), are widely used in marine applications. These alloys have excellent resistance to seawater corrosion, biofouling, and erosion - corrosion.
The addition of nickel to copper enhances the corrosion resistance of the alloy. Nickel helps to form a more stable and protective oxide layer on the surface of the alloy, which can withstand the aggressive conditions in the marine environment. Cupronickel alloys are commonly used in shipbuilding, offshore oil and gas platforms, and desalination plants.
Applications of Copper Bars in the Marine Environment
Although pure copper bars may face some challenges in the marine environment, they still have certain applications. In some cases, copper bars can be used in electrical systems on ships and offshore platforms. Copper's high electrical conductivity makes it an ideal material for electrical wiring and busbars. However, proper protection measures need to be taken to prevent corrosion.
For example, copper bars can be coated with a protective paint or a corrosion - resistant coating. These coatings can act as a barrier between the copper bar and the corrosive marine environment. Another option is to use copper bars in enclosed or protected areas where they are not directly exposed to seawater and sea spray.
In addition, copper bars can be used in heat exchangers in marine applications. Heat exchangers are used to transfer heat between different fluids, and copper's high thermal conductivity makes it a suitable material for this purpose. However, in heat exchangers, the copper bars need to be carefully designed and maintained to prevent corrosion.
Comparison with Other Materials
When considering using copper bars in the marine environment, it is also important to compare them with other materials. Stainless steel is another commonly used material in marine applications. Stainless steel has good corrosion resistance, especially in chloride - containing environments. However, stainless steel can be more expensive than copper, and its electrical and thermal conductivity is lower than that of copper.
Aluminum is also a lightweight and corrosion - resistant material. Aluminum alloys are used in many marine applications, such as boat hulls and superstructures. However, aluminum has a lower strength than copper, and it may not be suitable for applications where high strength is required.
Our Offerings as a Copper Bar Supplier
As a copper bar supplier, we offer a wide range of copper bars and copper alloys to meet the needs of different applications, including those in the marine environment. We have pure copper bars with high electrical and thermal conductivity, as well as copper - nickel alloys that are highly resistant to seawater corrosion.
Our copper bars are manufactured using high - quality raw materials and advanced manufacturing processes to ensure their quality and performance. We can also provide customized solutions according to the specific requirements of our customers. Whether you need copper bars for electrical systems, heat exchangers, or other marine applications, we can offer the right products for you.

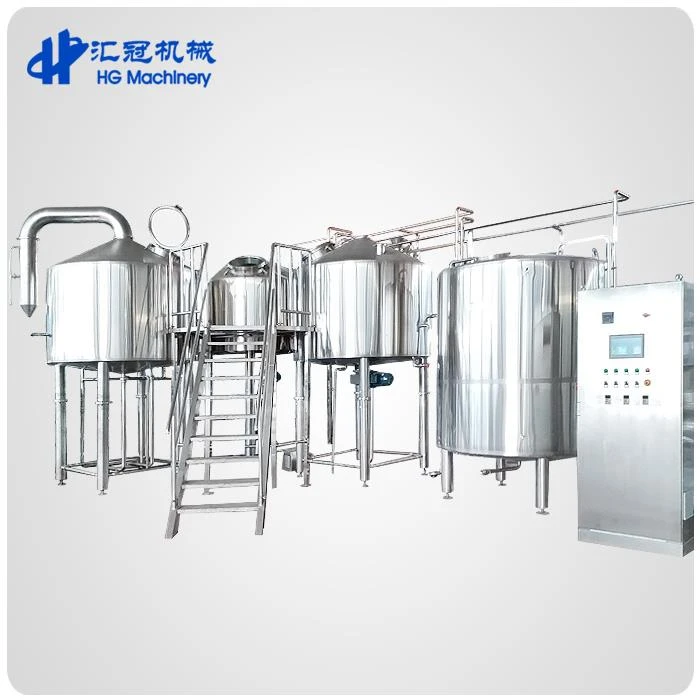

If you are interested in our copper bars for marine applications, you may also be interested in our related products. For example, we can recommend some brewing equipment that may be used in marine - related facilities such as floating breweries. Check out our 10BBL Macro Brewery Fresh Beer Brewhouse Equipment, 500L 1000L Three Vessels Brewhouse Small Fresh Beer Production Processing Equipment Line For Sale, and 1000L2000L Micro Brewery Fermentation Equipment Commercial Beer Brewing Equipment.
Contact Us for Procurement
If you are considering using copper bars in your marine projects, we encourage you to contact us for procurement and further discussions. Our team of experts can provide you with detailed information about our products, including their properties, performance, and suitability for your specific applications. We can also offer advice on corrosion protection measures and installation techniques.
We are committed to providing high - quality products and excellent customer service. Whether you are a small - scale marine project developer or a large - scale shipbuilder, we can meet your copper bar requirements. So, don't hesitate to reach out to us and start a successful partnership.
References
- Jones, D. A. (1992). Principles and Prevention of Corrosion. Macmillan Publishing Company.
- Uhlig, H. H., & Revie, R. W. (1985). Corrosion and Corrosion Control: An Introduction to Corrosion Science and Engineering. John Wiley & Sons.
- Fontana, M. G. (1986). Corrosion Engineering. McGraw - Hill.
