Hey there! As a copper bar supplier, I often get asked about the conductivity of copper bars. So, I thought I'd sit down and write a blog post to answer this question in detail.
First off, let's talk about what conductivity actually means. Conductivity is a measure of a material's ability to conduct electric current. It's basically how easily electrons can move through a substance. The higher the conductivity, the better the material is at carrying electricity.
Now, copper is well - known for its excellent electrical conductivity. In fact, it's one of the best conductors out there, right up there with silver. Silver has the highest electrical conductivity of all metals, but copper is a close second. And because copper is more affordable than silver, it's widely used in electrical applications.
The conductivity of copper bars is influenced by a few factors. One of the main factors is the purity of the copper. Pure copper has a very high conductivity. Commercially pure copper, which is around 99.9% pure, has an electrical conductivity of about 58.5 × 10⁶ S/m (siemens per meter) at 20°C. That's pretty impressive! But if there are impurities in the copper, the conductivity can go down. For example, if there are small amounts of other metals or non - metals mixed in, these impurities can act as obstacles to the flow of electrons, reducing the conductivity.
Another factor that affects conductivity is temperature. As the temperature of a copper bar increases, its conductivity decreases. This is because at higher temperatures, the atoms in the copper vibrate more vigorously. These vibrations make it harder for the electrons to move through the material, so the conductivity drops. The relationship between temperature and conductivity is described by the temperature coefficient of resistance. For copper, the temperature coefficient of resistance is about 0.00393 per °C at 20°C. This means that for every 1°C increase in temperature, the resistance of the copper bar increases by about 0.393%.
The size and shape of the copper bar also play a role in its conductivity. A thicker copper bar will generally have a lower resistance and higher conductivity than a thinner one. This is because a thicker bar provides more paths for the electrons to flow through. Similarly, a shorter bar will have less resistance than a longer one, all other things being equal. This is based on the formula for resistance, R = ρL/A, where R is the resistance, ρ is the resistivity (the reciprocal of conductivity), L is the length of the bar, and A is the cross - sectional area.
So, why is the high conductivity of copper bars so important? Well, there are countless applications. In the electrical power industry, copper bars are used in power distribution systems, transformers, and generators. Their high conductivity allows for efficient transmission of electricity, reducing energy losses. In electronics, copper bars are used in printed circuit boards (PCBs), connectors, and electrical wiring. The low resistance of copper ensures that electronic devices can operate smoothly and with minimal power consumption.

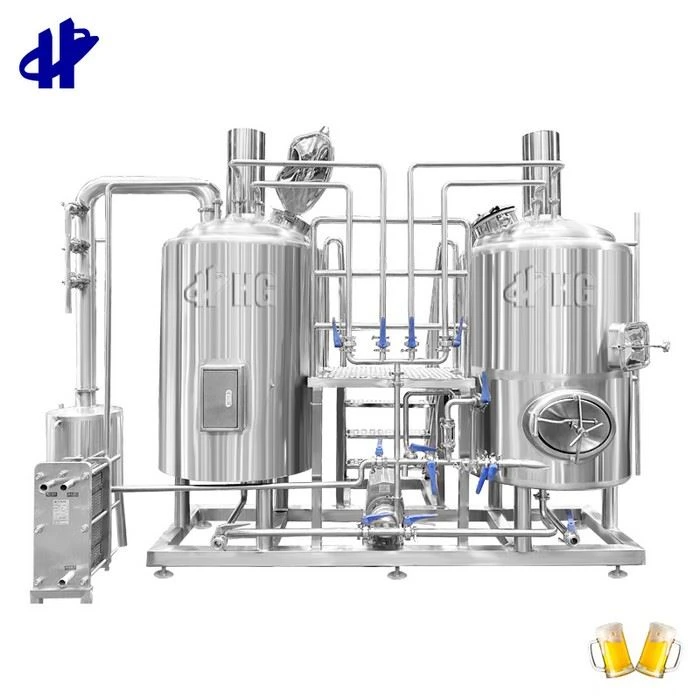

Now, if you're in the brewing industry, you might be interested in our other products as well. We also offer Steel Conical Fermenter, which are essential for the fermentation process. These fermenters are made with high - quality steel and are designed to provide optimal conditions for brewing great beer. And if you're looking for Beer Brewing Supplies, we've got you covered. From yeast to hops, we have everything you need to brew delicious beer. Also, our Beer Line System ensures a smooth and efficient flow of beer from the keg to the tap.
If you're in the market for copper bars or any of our other products, don't hesitate to reach out. Whether you're an electrical contractor, an electronics manufacturer, or a brewer, we can provide you with high - quality products at competitive prices. We're always happy to have a chat about your specific needs and see how we can help. So, drop us a line and let's start a conversation about your next project!
References:
- "Electrical Conductivity of Metals" - General Physics textbooks
- "Materials Science and Engineering" - Academic resources on material properties
